Wiring an electrical outlet may seem like a straightforward task, but it’s one that requires caution, proper tools, and a solid understanding of electrical safety. As home inspectors, we often encounter outlets that are improperly wired, which can lead to a serious fire or shock hazards. If you’re planning to tackle this project, here’s a clear step-by-step guide on how to wire a standard outlet safely.
Important Note: Electricity can be dangerous. If you’re not comfortable or experienced working with electrical systems, we strongly recommend hiring a licensed electrician. This guide is meant for educational purposes only.
What You’ll Need
- New electrical outlet (15-amp or 20-amp, depending on your circuit)
- Screwdrivers (flathead and Phillips)
- Wire strippers
- Needle-nose pliers
- Voltage tester
- Electrical tape
- Outlet cover plate
Step 1: Turn Off the Power
Go to your breaker panel and switch off the circuit that controls the outlet you’ll be working on. Use a voltage tester to double-check that there’s no power at the wires before you touch them.
Step 2: Prepare the Wires
Inside the outlet box, you should see three wires:
- Black (Hot): Carries current to the outlet
- White (Neutral): Returns current to the panel
- Green or Bare Copper (Ground): Provides a safe path in case of a fault
Strip about ¾ inch of insulation off the ends of the black and white wires using wire strippers.

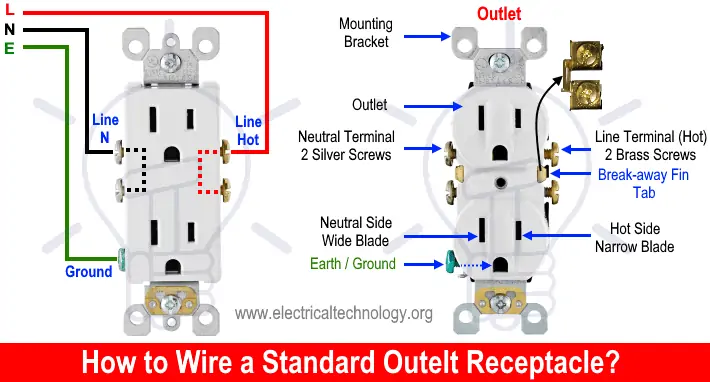

Step 3: Connect the Wires to the Outlet
- Hot (black) wire → brass screw
- Neutral (white) wire → silver screw
- Ground (green/bare) wire → green screw
Bend the wire ends into a hook shape with pliers, loop them around the screws in a clockwise direction, and tighten securely.
Step 4: Secure the Outlet
Carefully tuck the wires back into the outlet box. Screw the outlet into place, making sure it’s level with the wall surface. Attach the cover plate.
Step 5: Restore Power and Test
Switch the breaker back on and use a plug-in outlet tester to confirm the outlet is wired correctly. Test both receptacles to ensure proper grounding and polarity.
Common Issues We See During Inspections
As inspectors, we often come across these mistakes:
- Reversed polarity: Hot and neutral wires swapped
- No ground connection: Dangerous in modern homes with grounded systems
- Loose connections: Can cause arcing and fire hazards
Final Thoughts
Wiring an outlet correctly ensures your home’s electrical system runs safely and efficiently. It’s always better to consult a professional if you’re uncertain. A properly wired outlet not only protects your appliances but also your family’s safety.
